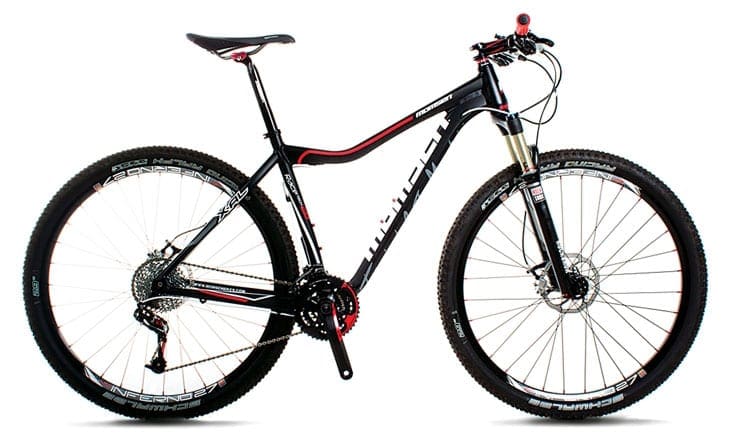

Image module

FEATURES

  • Race Tech SLA Frame
  • X-AL Specific Frame Design
  • RockShox Sid Suspension Fork + 15mm Thru-Axle
  • Custom “ Big Guy” Wheelset
  • Schwalbe Racing Ralph Snakeskin Tyres
  • SRAM 3 X 10 Drivetrain
  • FIZIK Gobi XM Saddle

SPECIFICATIONS

Frame Race Tech SLA -Alloy 7000 Butted Tubeset – Internal Routing – Formed Tubing – PressFit BB – 142 x 12 Thru-Axle Rear
Sizes Large, X-Large
Fork RockShox SID XX 15mm Thru-Axle 100mm
Chainwheel SRAM X9 44/32/22T
Bottom Bracket SRAM GXP PressFit
F. Derailleur SRAM X9
R. Derailleur SRAM X9 Type 2 10 Speed
Shifter SRAM X9 Ball Bearing Trigger
Brake Levers Avid Elixir 7 Carbon
Brakes 170 Fr /160 Rr
Cassette SRAM PG1070 – 11-36T
Rims Sun Ringle Inferno 27 – 32H
Tires Schwalbe Racing Ralph SNAKESKIN Tubeless 29 x 2.25
Pedals N/A
Handlebar Alloy Flat Top 29er – 680mm – 31.8mm Oversize
Stem Alloy 3D Forged Superlight – 31.8mm Oversize
Seatpost Alloy 3D Forged 31.6
Seat Fizik GOBI XM
Headset FSA No 42 Alloy Taper
Colors Matte Black w/Red Details
Chain KMC 10 Speed
Hubset SRAM X9 15mm Fr – SRAM X9 142 x 12 Rr – 32h
Spokes Stainless Butted with Alloy Nipples
Grips Silicone Race
Weight 11.73kg ( X-Large, without pedals )

GEOMETRY

Size LARGE XL
(A) Seat Tube Length  480  533
(B) Top Tube Effective  615  640
(C) Head Tube Angle  71°  71°
(D) Seat Tube Angle  73°  73°
(E) Wheelbase  1102  1127
(F) Rear Center  440  440
(G) BB Drop  62  62
(H) Head Tube Length  120  120
