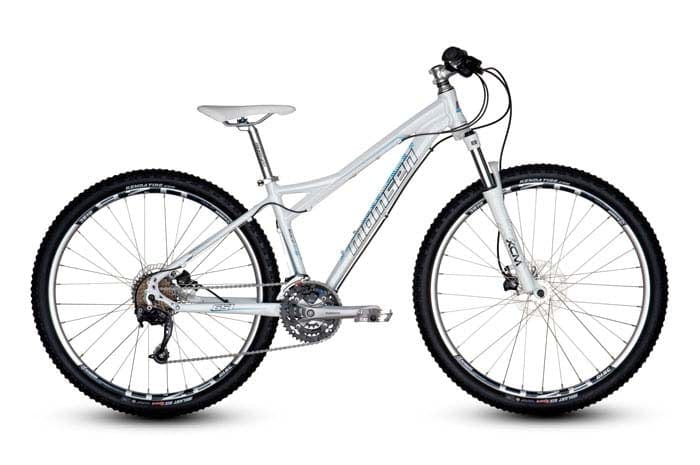

Image module

FEATURES

  • Reduced Standover Compared To AL651 Frame. Allows For Easier Dismounting. Inspires Confidence. Improves Maneuverability.
  • New Race Tech 2 650b Frame With Alloy Butted 6061 Tubing. Lightweight Tubing profile. Reduced Wall Thickness In Select Areas. Increased Thickness Where You Need It Most.
  • Tektro Hydraulic Disc Brakes. Excellent Braking Performance. Smooth Action.
  • Shimano 27 Speed Gear System With SLX Rear Derailleur. Precise Gear Changes. Smooth Shifting.
  • Shimano Crankset 42/32/22 Triple Chainring. Wide Gear Range For Tackling All Terrain.
  • Suntour XCM Suspension Fork. Smooths The Bumps. 100mm Of Comfort Travel.

SPECIFICATIONS

Frame Race Tech 2, Alloy 6061 Butted Tubeset
Sizes Small, Medium, Large
Fork SR Suntour XCM, 100mm
Chainwheel Shimano M361 42/32/22T
Bottom Bracket Cartridge Type
F. Derailleur Shimano Acera
R. Derailleur Shimano SLX
Shifter Shimano Acera Trigger Type
Brake Levers Tektro Hydraulic
Brakes Tektro Hydraulic
Cassette Shimano HG20 Cassette, 11-32T
Rims Weinmann U28 650B, 32H
Tires Kenda Slant Six 27.5 x 2.10 60tpi
Pedals Alloy Cage, Nylon Body
Handlebar Alloy Riser, 31.8mm Oversize
Stem Alloy Forged, 31.8mm Oversize
Seatpost Alloy Micro-Adjust
Seat SR Seta Ladies
Headset Ahead Type, 1.1/8″
Colors White w/Blue Details
Chain KMC 9 Speed
Hubset Alloy Disc Type, 32H
Spokes Stainless Steel Black
Grips Ergonomic Kraton Comfort
Weight 14.15kg (Medium, Excl. Pedals)

GEOMETRY

SIZE SMALL MEDIUM LARGE
(A) Seat Tube Length  381  432  483
(B) Top Tube Effective  565  585  615
(C) Head Tube Angle  71°  71°  71°
(D) Seat Tube Angle  73°  73°  73°
(E) Wheelbase  1042  1063  1093
(F) Rear Center  435  435  435
(G) BB Drop  53  53  53
(H) Head Tube Length  100  105  115
