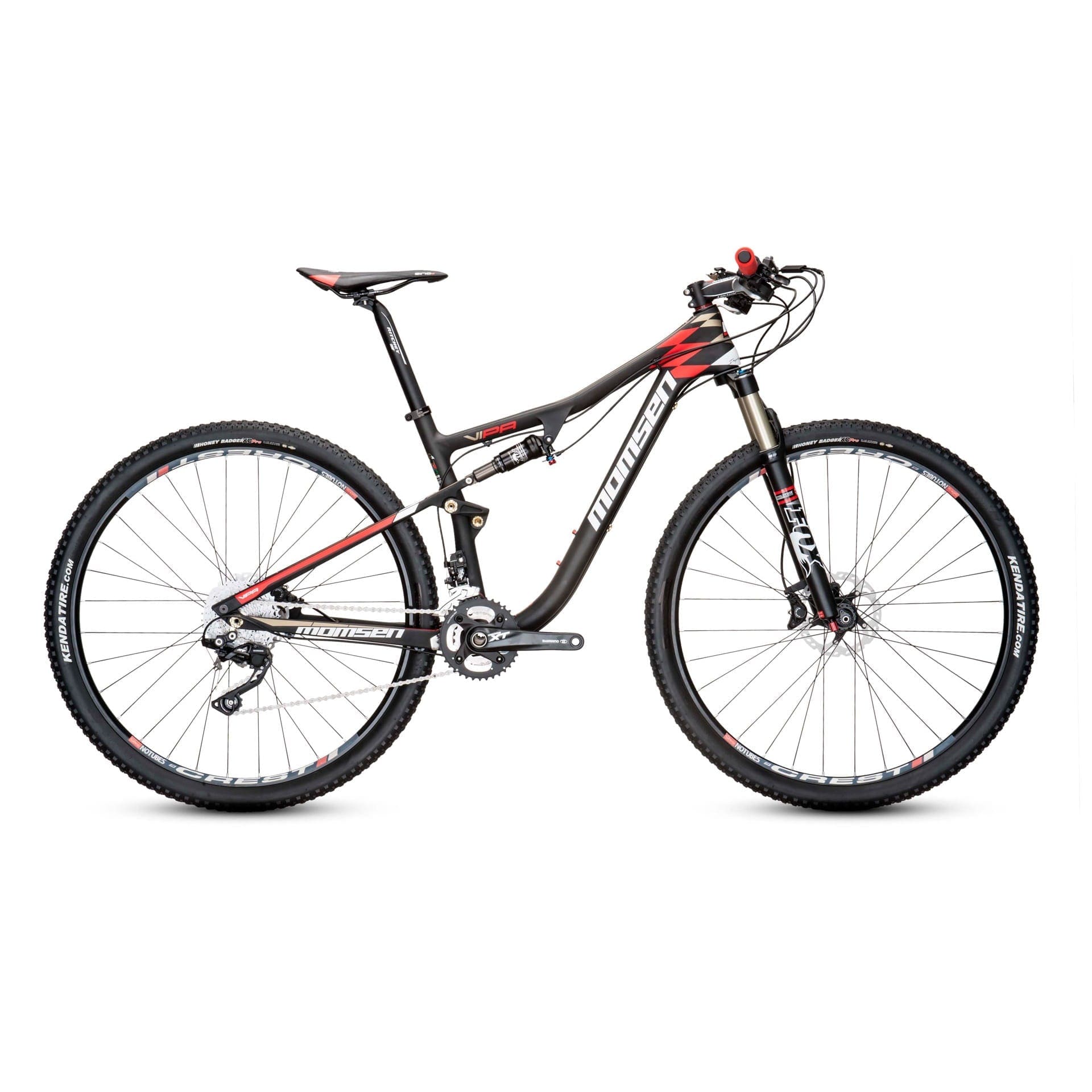

Image module

SPECIFICATIONS

Frame Full Carbon Front Triangle, Full Carbon Rear Triangle, 80mm Rear Wheel Travel
Sizes Small (650B), Small (29er), Medium (29er), Large (29er)
Fork Fox Float CTD w/Remote Lockout, 100mm Travel, 15mm Thru-Axle
Rear Shock FOX Float CTD Rear Shock w/Remote Lockout
Chainwheel Shimano XT 38 / 24
Bottom Bracket Shimano Pressfit
F. Derailleur Shimano XT Direct Mount
R. Derailleur Shimano XT Shadow Plus
Shifter Shimano XT
Brake Levers Shimano XT
Brakes Shimano XT
Cassette Shimano XT, 11-36T
Rims Stan’s No Tubes ZTR Crest, 32H
Tires Kenda Honey Badger XC Pro, 29×2.05 SCT Tubeless
Pedals N/A
Handlebar Ritchey Comp MTN 2X, 720mm +- 5mm Rise, 9 Degree Sweep
Stem Ritchey 4-Axis WTD, 31.8mm Oversize
Seatpost Ritchey 2B Comp, 31.6mm
Seat Selle Royal Seta S1
Headset Integrated Taper
Colors Matte Carbon w/Gold and Red Details
Chain Shimano XT 10 Speed
Hubset No Tubes Stan’s 3.30 – 15mm Front, 142 x 12mm Rear, 32H
Spokes Stainless Butted with Alloy Nipples
Grips Silicone Race
Weight Medium: 11.66kg ( Excl. Pedals )
Image module
SIZE SMALL MEDIUM LARGE
(A) Seat Tube Length  406  432  483
(B) Top Tube Effective  570  595  615
(C) Head Tube Angle  70.5°  70.5°  70.5°
(D) Seat Tube Angle  73.5°  73.5°  73.5°
(E) Wheelbase  1077  1102  1122
(F) Rear Center  440  440  440
(G) BB Drop  40  40  40
(H) Head Tube Length  105  115  125
(I) Reach  397  418.8  436
(J) Stack  585  595  605

GEOMETRY
