FEATURES

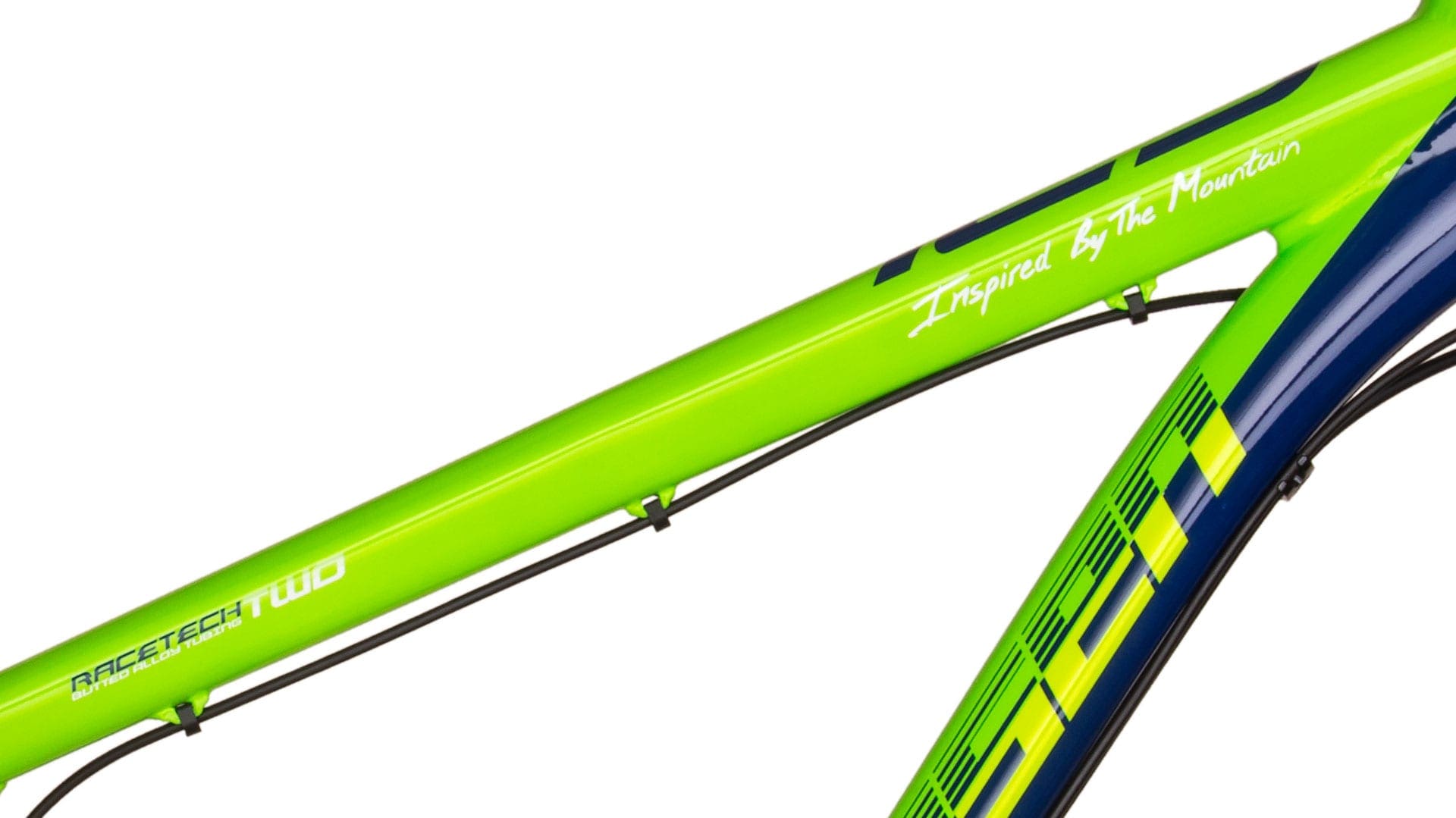

  • New 2016 Race Tech 2 Frame with Revised Tubing, Alloy 6061 Butted – New Downtube and Updated 3D Forged Dropout with Internal Brake Caliper Mounting

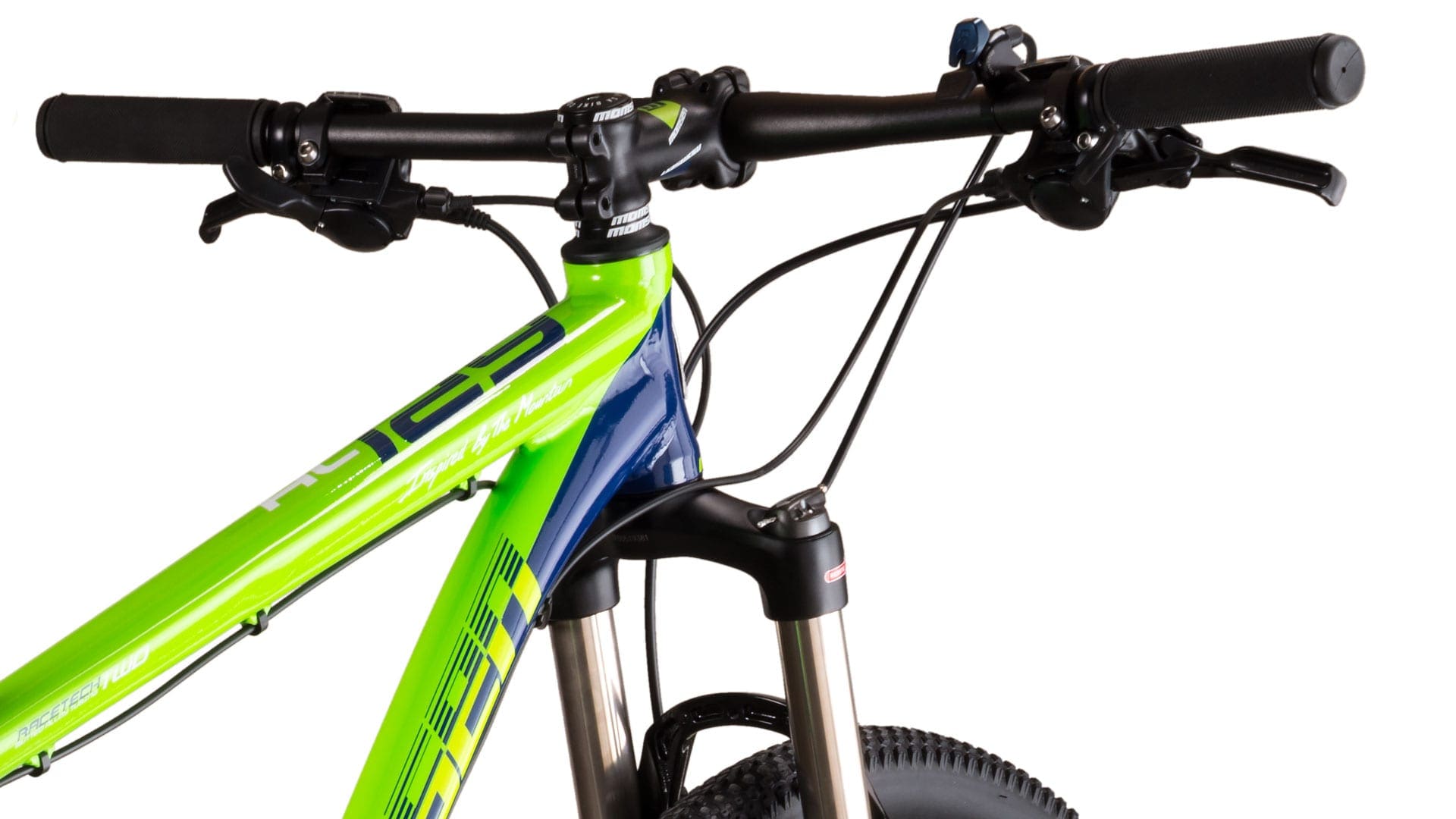

  • SR Suntour XCR32 Suspension Fork with Remote Lockout Lever – 100mm travel with preload adjustment

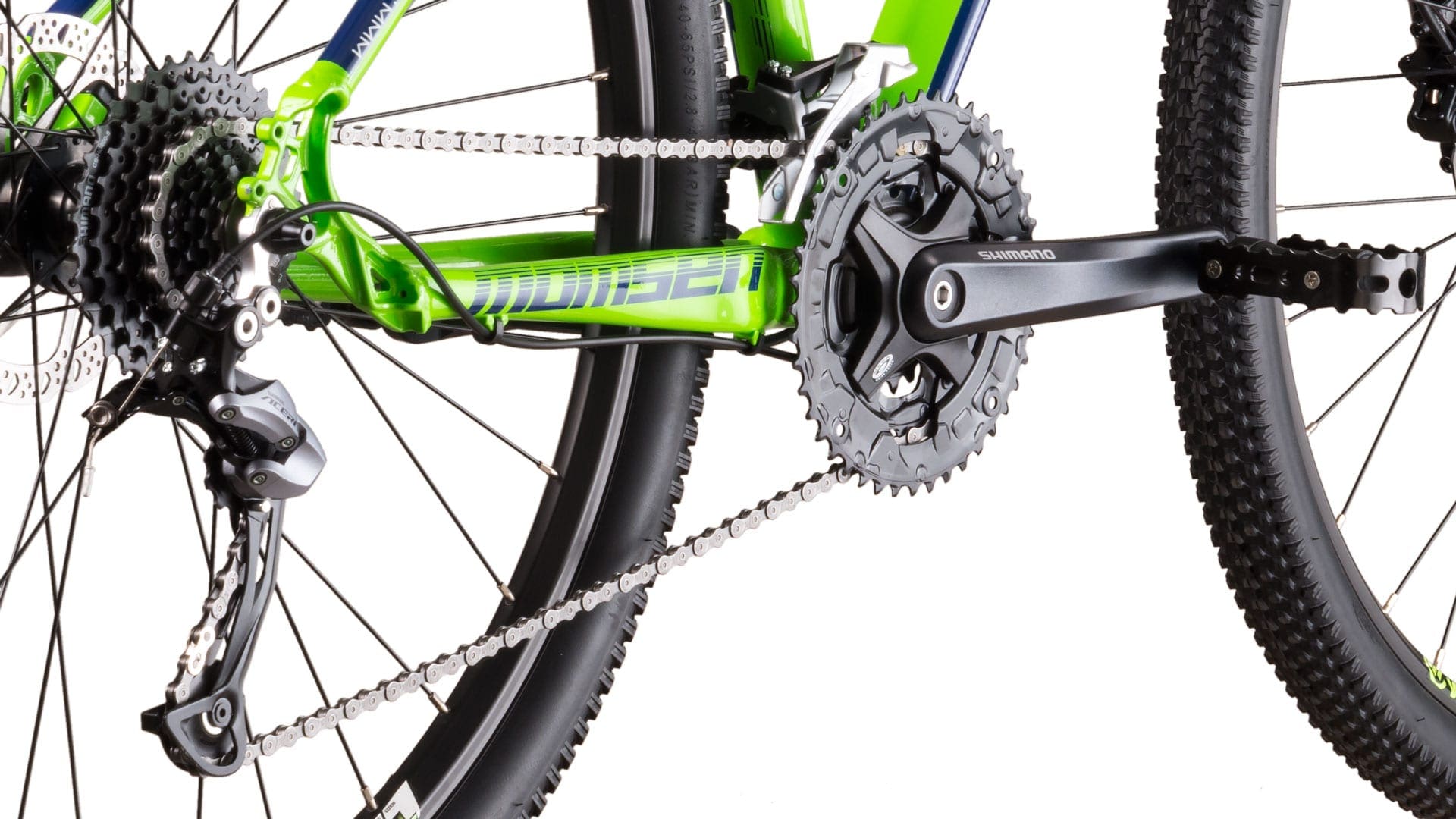

  • Shimano® Acera 9-Speed Rear Derailleur – Shadow Design
  • Tektro M290 Hydraulic Disc Brakes with Tektro Brake Rotors – Proven Performance
  • Shimano® M351 Crankset and Shimano Cartridge Bottom Bracket – Triple Chainring Design 44/32/22T
  • Shimano® HG200-9 Cassette with 11-34 Wide Range – ideal for 29er wheelsize
  • Weinmann Alloy DoubleWall 29er Rims – Robust and Light
Image module
Image module
Image module
Image module
Image module

SPECIFICATIONS

Frame 2016 Race Tech 2, Alloy 6061 Butted Tubing
Sizes Small, Medium, Large, X-Large
Fork SR Suntour XCR32, Remote Lockout, Preload Adjust, 100mm Travel
Rear Shock N/A
Chainwheel Shimano M351, 44/32/22T
Bottom Bracket Shimano Cartridge
F. Derailleur Shimano Altus
R. Derailleur Shimano Acera, Shadow Design
Shifter Shimano Acera, RapidFire Plus
Brake Levers Tektro M290 Hydraulic Disc
Brakes Tektro M290 Hydraulic Disc, Tektro Brake Rotors, 160mm Front and Rear
Cassette Shimano HG200-9, 11-34T Wide Range
Rims Weinmann Custom XM260, 32H, Presta Valve
Tires CST Jack Rabbit 29 x 2.10, 27tpi Wire Bead
Pedals Steel Cage MTB
Handlebar Alloy Flat, 31.8 Oversize, 700mm
Stem Alloy Forged, 31.8mm Oversize
Seatpost Alloy Micro-Adjust
Seat Momsen Custom, Embossed Graphic, ED Rail
Headset Ahead Type
Colors Gloss Green / Blue or Dark Grey / Black
Chain KMC 9 Speed
Hubset Alloy Disc, 32H, Quick Release
Spokes Stainless
Grips Kraton Comfort

GEOMETRY

SIZE SMALL MEDIUM LARGE X-LARGE
(A) Seat Tube Length 380 430 480 533
(B) Top Tube Effective 580 595 615 630
(C) Head Tube Angle 71° 71.5° 71.5° 71.5°
(D) Seat Tube Angle 73° 73° 73° 73°
(E) Wheelbase 1083 1088 1107 1122
(F) Rear Center 450 455 455 455
(G) BB Drop 60 60 60 60
(H) Head Tube Length 110 110 110 120
