FEATURES

  • New RACETECH 2 Alloy 6069 Frame featuring a revised butted tubing and a new 3D Forged dropout
  • 4 Sizes Available – we have added an XL size for larger riders

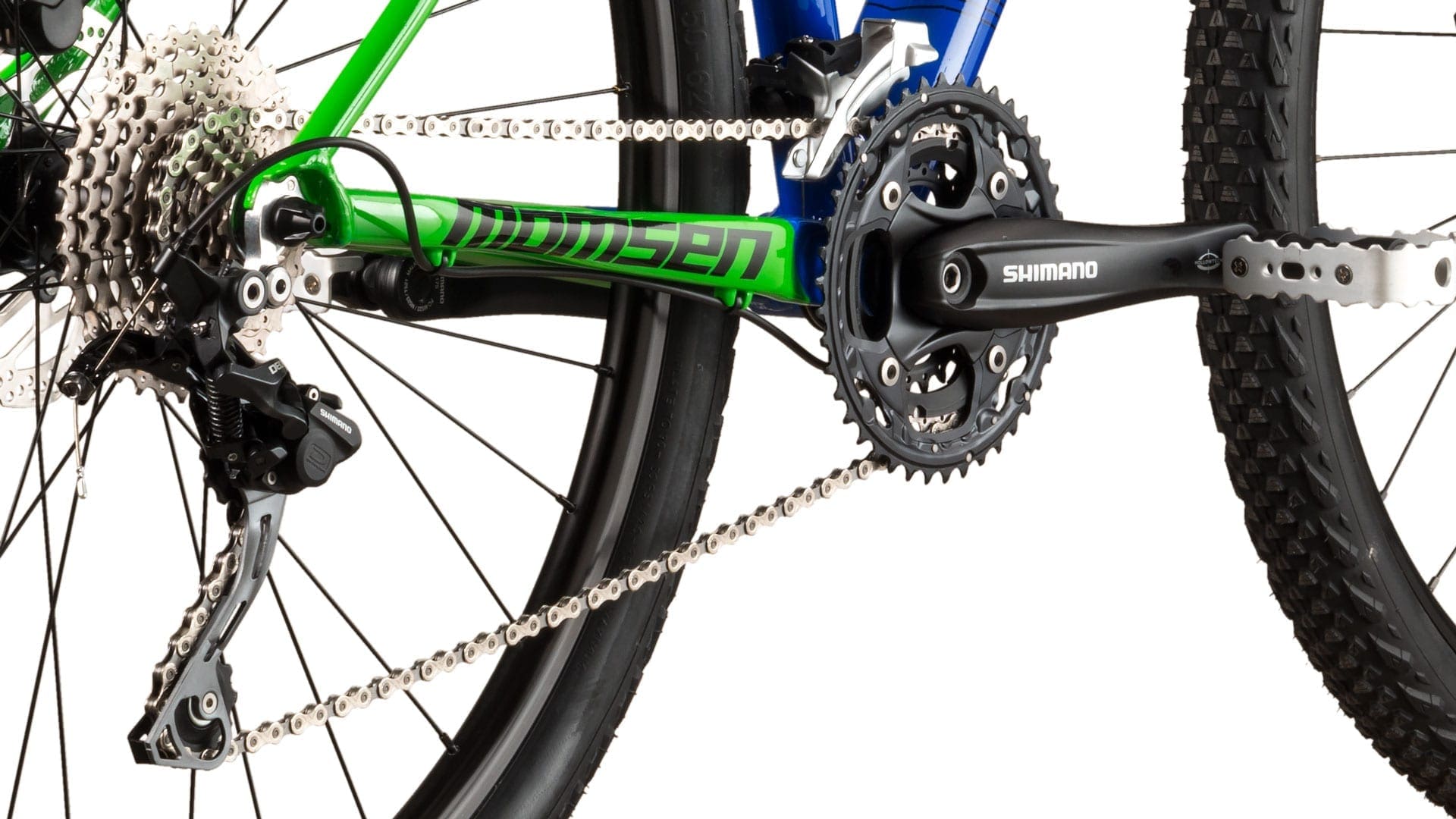

  • Shimano® 3 x10 Speed Drivetrain – the reputable and proven choice

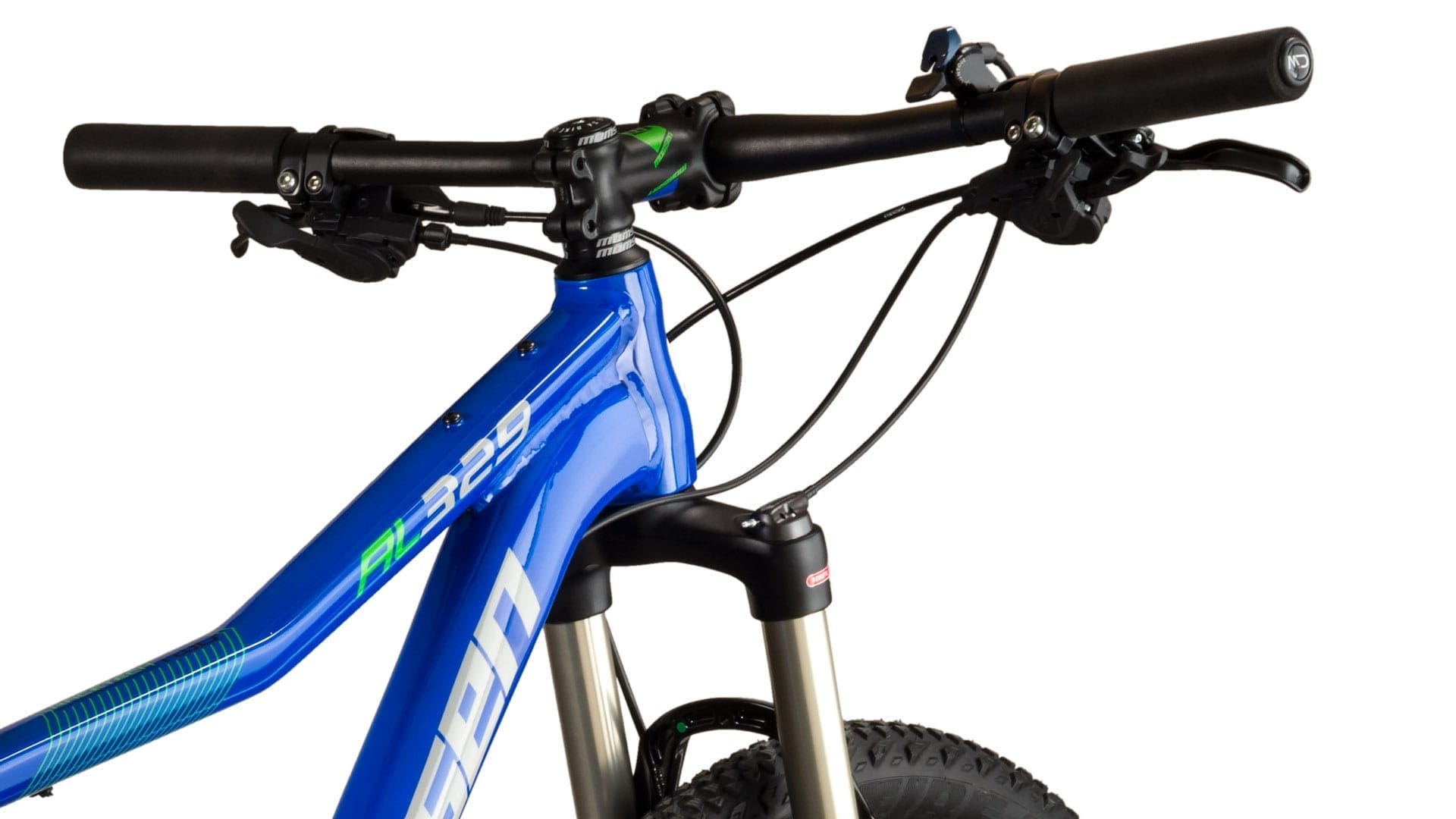

  • Suntour RAIDON RL-R Air Suspension Fork – Remote Lockout with Rebound Adjustment
  • Shimano® M396 Hydraulic Disc Brakes – Powerful and Reliable braking performance
  • Shimano® M522 Crankset with Shimano® ES-25 Splined Bottom Bracket – Durable and Efficient
  • Oversize TAPER Headtube Design – Upgraded Headset and Taper Steerer Fork
  • Shimano® HG50 11-36 Cassette – Wide Ratio Gearing ideal for 29ers
Image module
Image module
Image module
Image module
Image module

SPECIFICATIONS

Frame 2016 Race Tech 2, Alloy 6069 Butted Tubing, 3D Forged dropout
Sizes Small, Medium, Large, X-Large
Fork SR Suntour RAIDON RL-R Air, Remote Lockout w/Rebound Adjustment, 100mm
Rear Shock N/A
Chainwheel Shimano M522 Octalink 42/32/24T
Bottom Bracket Shimano Octalink ES25
F. Derailleur Shimano Deore 3×10 Dual Pull
R. Derailleur Shimano Deore Shadow Plus
Shifter Shimano M396 Deore
Brake Levers Shimano M396 Hydraulic Disc
Brakes Shimano M396 Hydraulic Disc, Shimano SM-RT30 Rotors, 160mm Front and Rear
Cassette Shimano HG50 11-36T

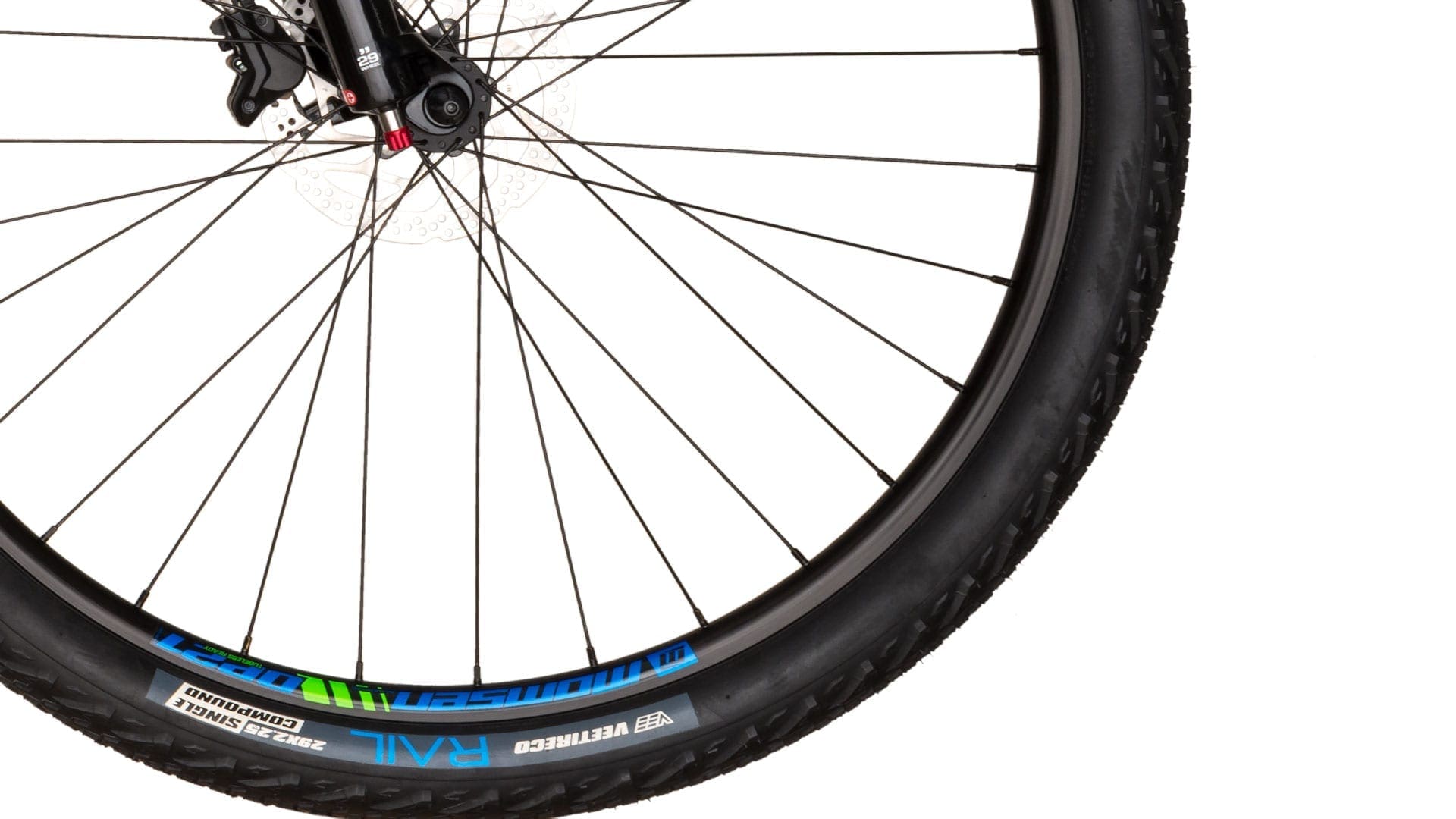

Rims Alex/Momsen DP21, Tubeless Ready, 32H
Tires Vee Tire Co. RAIL Custom Logo, Wire Bead, Front: 29 x 2.25, Rear 29 x 1.95
Pedals Alloy Cage MTB
Handlebar Alloy Flat, 31.8 Oversize, 700mm
Stem Alloy Forged, 31.8mm Oversize
Seatpost Alloy Micro-Adjust
Seat Momsen Custom, Embossed Graphic, ED Rail
Headset Alloy Taper
Colors Gloss Blue / Green
Chain KMC 10 Speed
Hubset Shimano RM35, Centerlock Disc, 32H
Spokes Stainless
Grips Silicone Race

GEOMETRY

Image module
SIZE SMALL MEDIUM LARGE X-LARGE
(A) Seat Tube Length  380  430  480  533
(B) Top Tube Effective  580  595  615  630
(C) Head Tube Angle  71°  71.5°  71.5°  71.5°
(D) Seat Tube Angle  73.5°  73°  73°  73°
(E) Wheelbase  1085  1089  1109  1124
(F) Rear Center  440  440  440  440
(G) BB Drop  60  60  60  60
(H) Head Tube Length  110  110  120  130
