FEATURES

  • New RACETECH 2 Alloy 6069 Frame featuring a revised butted tubing and a new 3D Forged dropout
  • 4 Sizes Available – we have added an XL size for larger riders

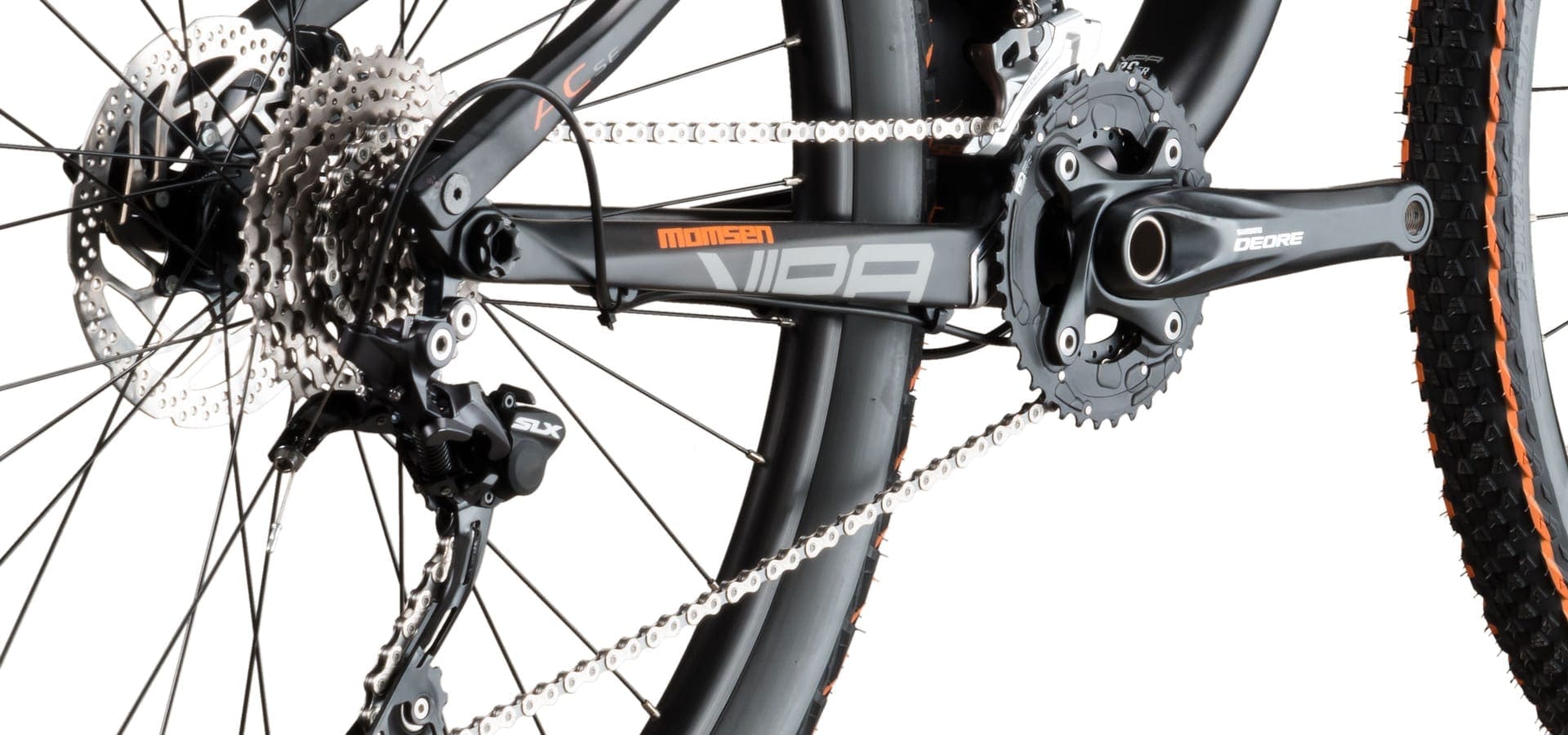

  • Shimano® XT 2×10 Speed Drivetrain – the most requested option
  • RockShox RECON Silver Air Suspension Fork – Solo Air with 100mm Travel
  • RockShox POPLOC Remote Lockout – on/off control of suspension

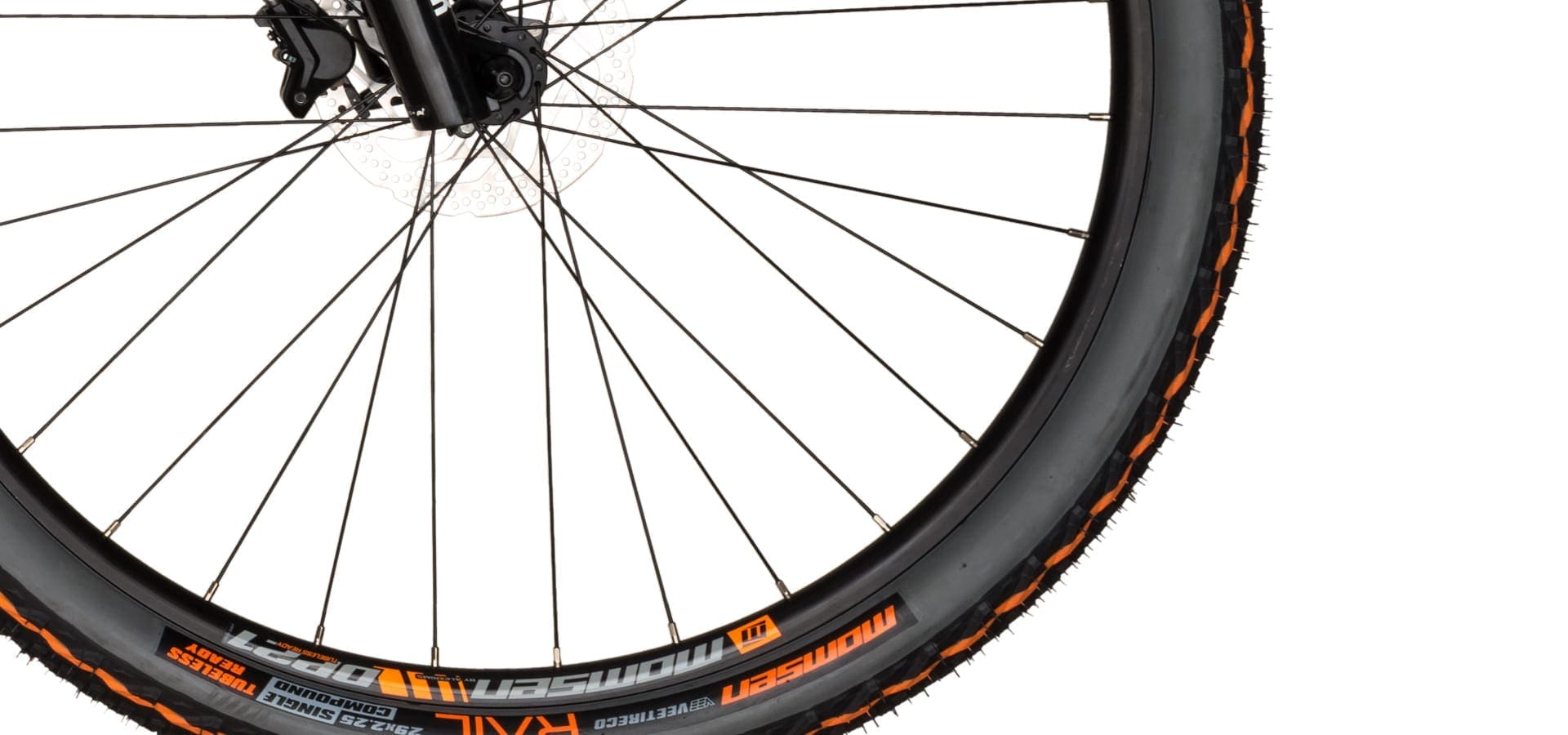

  • Stan’s ZTR RAPID 29er Tubeless Ready Rims – Patented Bead Socket Technology
  • Oversize TAPER Headtube Design – Upgraded Headset and Taper Steerer Fork
Image module
Image module
Image module
Image module
Image module

SPECIFICATIONS

Frame 2016 Race Tech 2, Alloy 6069 Butted Tubing, 3D Forged dropout
Sizes Small, Medium, Large, X-Large
Fork RockShox RECON Silver Air, Remote Lockout, 100mm
Rear Shock N/A
Chainwheel Shimano XT M785 38/24T
Bottom Bracket Shimano Hollowtech
F. Derailleur Shimano XT M785 Dual Pull
R. Derailleur Shimano XT M786 Shadow Plus
Shifter Shimano SLX M670 for 10 Speed
Brake Levers Shimano M506 Hydraulic Disc
Brakes Shimano M506 Hydraulic Disc, Shimano SM-RT30 Rotors, 160mm Front and Rear
Cassette Shimano HG50 11-36T
Rims Stan’s ZTR RAPID 29er Tubeless Ready, 32H
Tires Vee Tire Co. RAIL Custom Logo, Wire Bead, Front: 29 x 2.25, Rear 29 x 1.95
Pedals Alloy Cage MTB
Handlebar Alloy Flat, 31.8 Oversize, 700mm
Stem Alloy Forged, 31.8mm Oversize
Seatpost Alloy Micro-Adjust 3D Forged
Seat Momsen Custom, Embossed Graphic, ED Rail
Headset Alloy Taper
Colors Gloss Black / Orange
Chain KMC 10 Speed
Hubset Shimano RM35, Centerlock Disc, 32H
Spokes Stainless
Grips Silicone Race

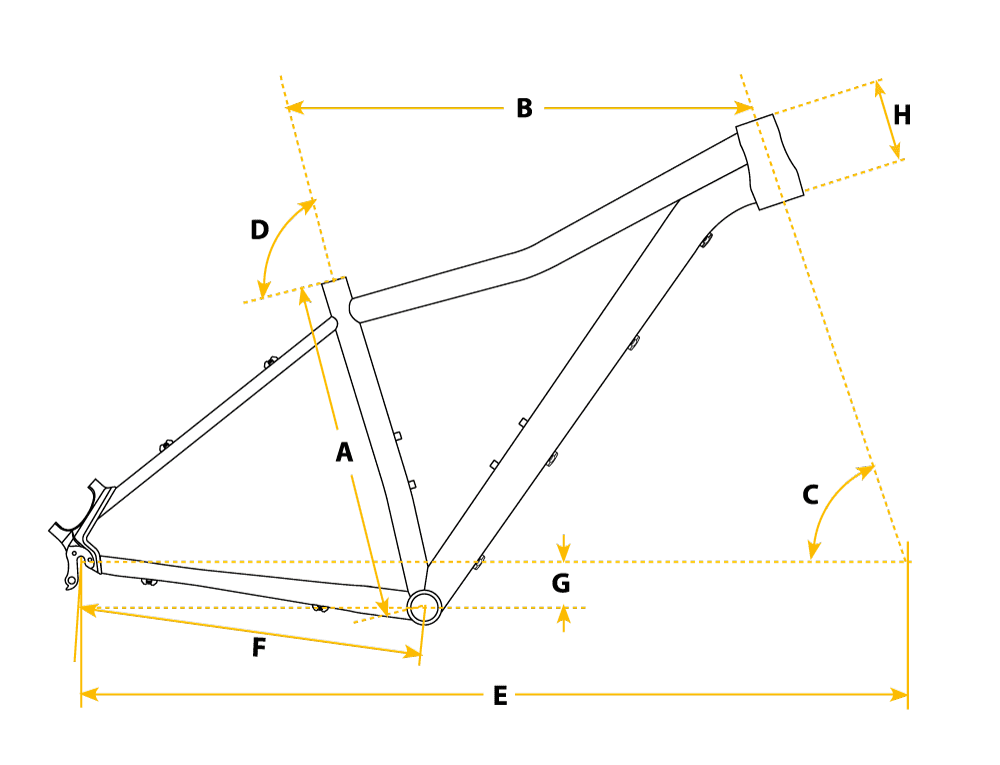

GEOMETRY

Image module
SIZE SMALL MEDIUM LARGE X-LARGE
(A) Seat Tube Length  380  430  480  533
(B) Top Tube Effective  580  595  615  630
(C) Head Tube Angle  71°  71.5°  71.5°  71.5°
(D) Seat Tube Angle  73.5°  73°  73°  73°
(E) Wheelbase  1085  1089  1109  1124
(F) Rear Center  440  440  440  440
(G) BB Drop  60  60  60  60
(H) Head Tube Length  110  110  120  130
