FEATURES

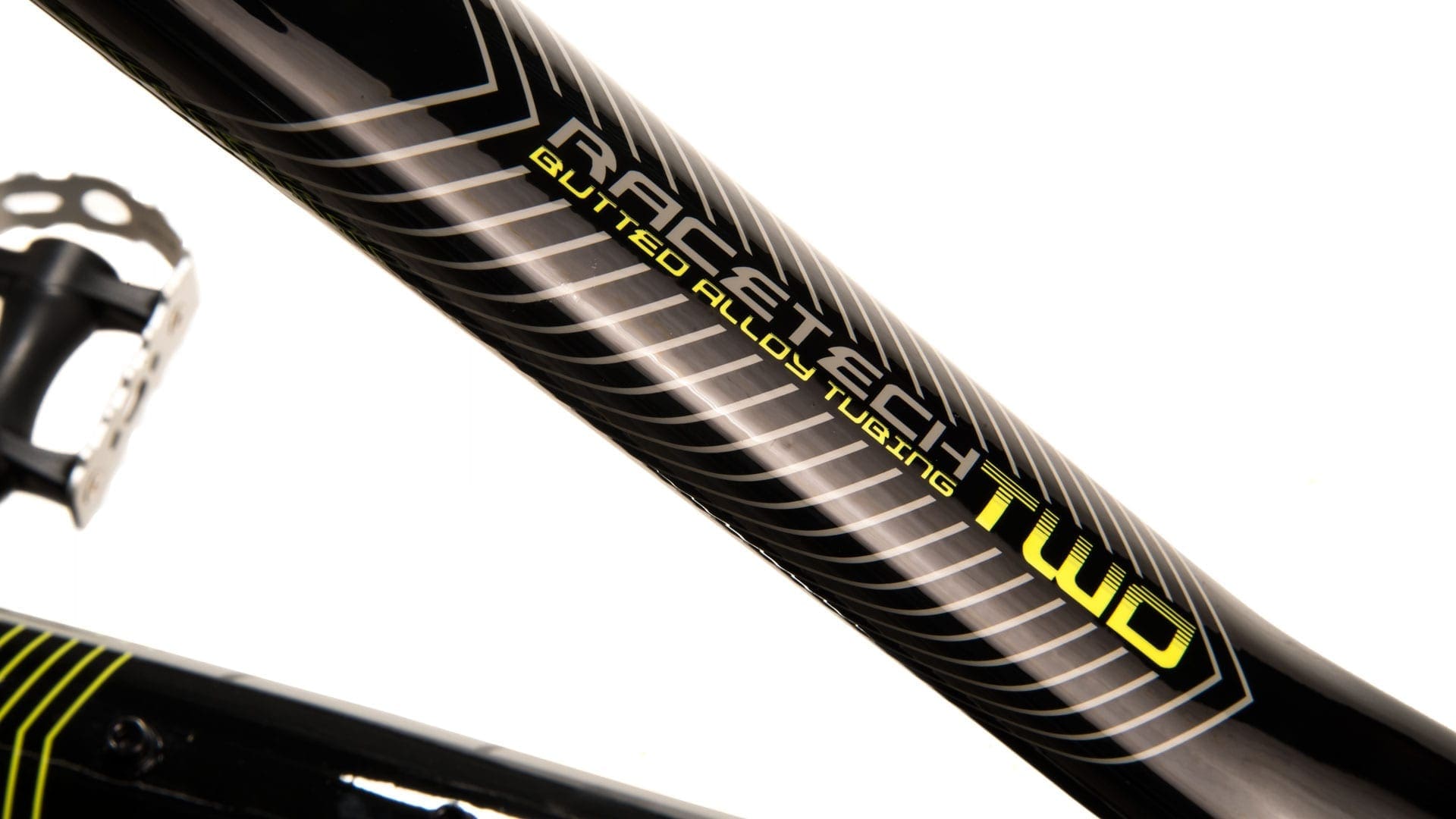

  • New RACETECH 2 Alloy 6069 Frame featuring a revised butted tubing and a new 3D Forged dropout
  • 4 Sizes Available – we have added an XL size for larger riders

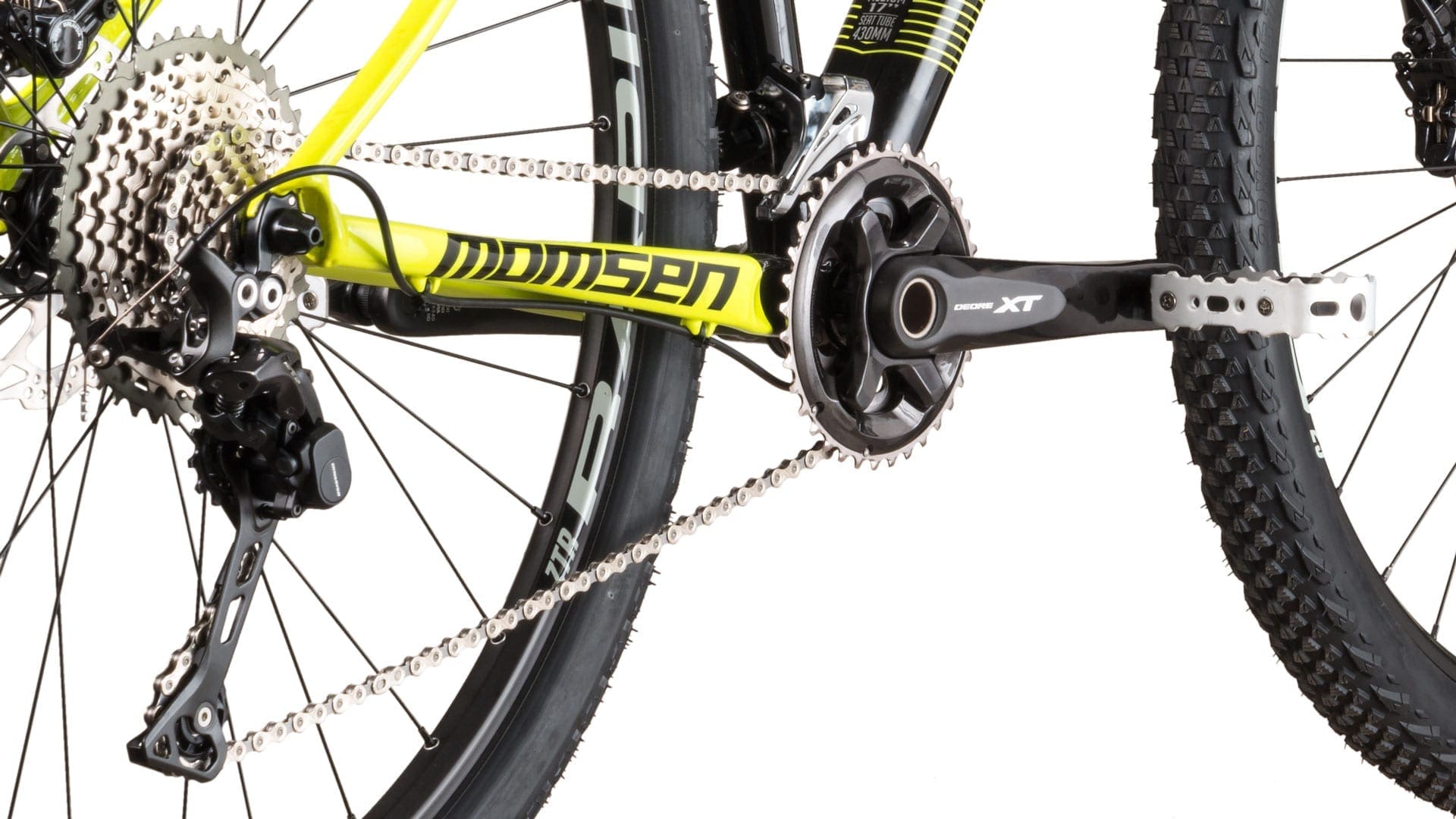

  • Shimano® M8000 XT 11 Speed Drivetrain – the new benchmark in value and performance
  • RockShox REBA RL Suspension Fork – Solo Air with 100mm Travel
  • RockShox ONELOC SPRINT Remote Lock – Revised Trigger Design and Actuation

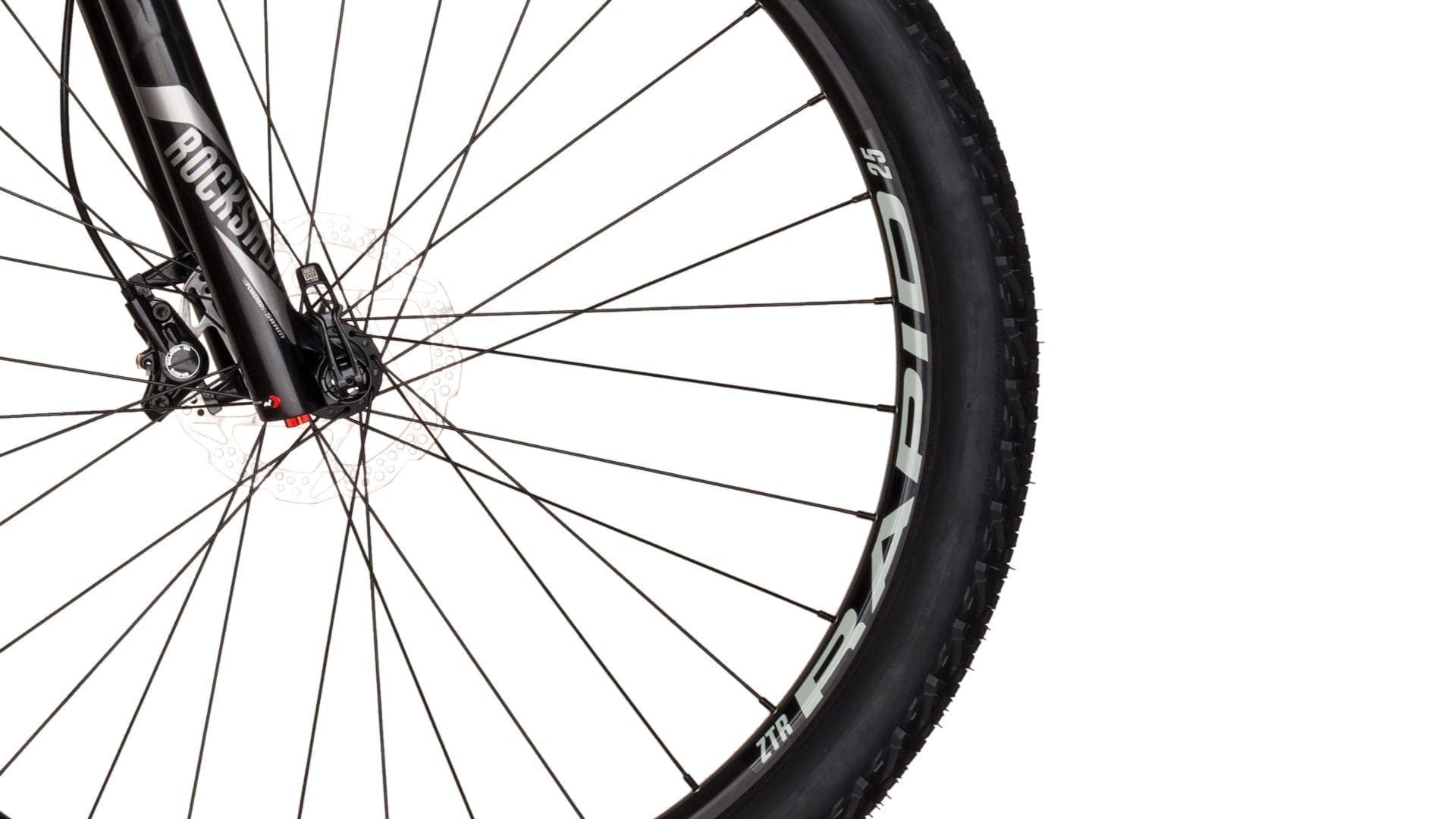

  • Stan’s ZTR RAPID 29er Tubeless Ready Rims – Patented Bead Socket Technology
  • Vee Tire Co. RAIL 29er Tubeless Ready Tyres – Race Proven
Image module
Image module
Image module
Image module
Image module

SPECIFICATIONS

Frame 2016 Race Tech 2, Alloy 6069 Butted Tubing, 3D Forged dropout
Sizes Small, Medium, Large, X-Large
Fork RockShox REBA RL 29, ONELOC SPRINT Remote Lockout, 100mm
Rear Shock N/A
Chainwheel Shimano XT M8000 36/26T for 11 Speed
Bottom Bracket Shimano Hollowtech
F. Derailleur Shimano XT 2×11 Dual Pull
R. Derailleur Shimano XT M8000 Shadow Plus for 11 Speed
Shifter Shimano XT M8000 11 Speed
Brake Levers Shimano M615 Hydraulic Disc
Brakes Shimano M615 Hydraulic Disc, Shimano SM-RT54 Rotors, 160mm Front and Rear
Cassette Shimano XT M8000 11-40T for 11 Speed
Rims Stan’s ZTR RAPID 29er Tubeless Ready, 32H
Tires Vee Tire Co. RAIL Custom Logo, 72tpi Folding Bead, Tubeless Ready, Front: 29 x 2.25, Rear 29 x 1.95
Pedals Alloy Cage MTB
Handlebar Alloy Flat, 31.8 Oversize, 700mm
Stem Alloy Forged, 31.8mm Oversize
Seatpost Alloy Micro-Adjust 3D Forged
Seat Momsen Custom, Embossed Graphic, ED Rail
Headset Alloy Taper
Colors Gloss Black / Neon Yellow
Chain KMC 11 Speed
Hubset Shimano Deore, Centerlock Disc, 32H
Spokes Stainless
Grips Silicone Race

GEOMETRY

SIZE SMALL MEDIUM LARGE X-LARGE
(A) Seat Tube Length  380  430  480  533
(B) Top Tube Effective  580  595  615  630
(C) Head Tube Angle  71°  71.5°  71.5°  71.5°
(D) Seat Tube Angle  73.5°  73°  73°  73°
(E) Wheelbase  1085  1089  1109  1124
(F) Rear Center  440  440  440  440
(G) BB Drop  60  60  60  60
(H) Head Tube Length  110  110  120  130
