Image module

FEATURES

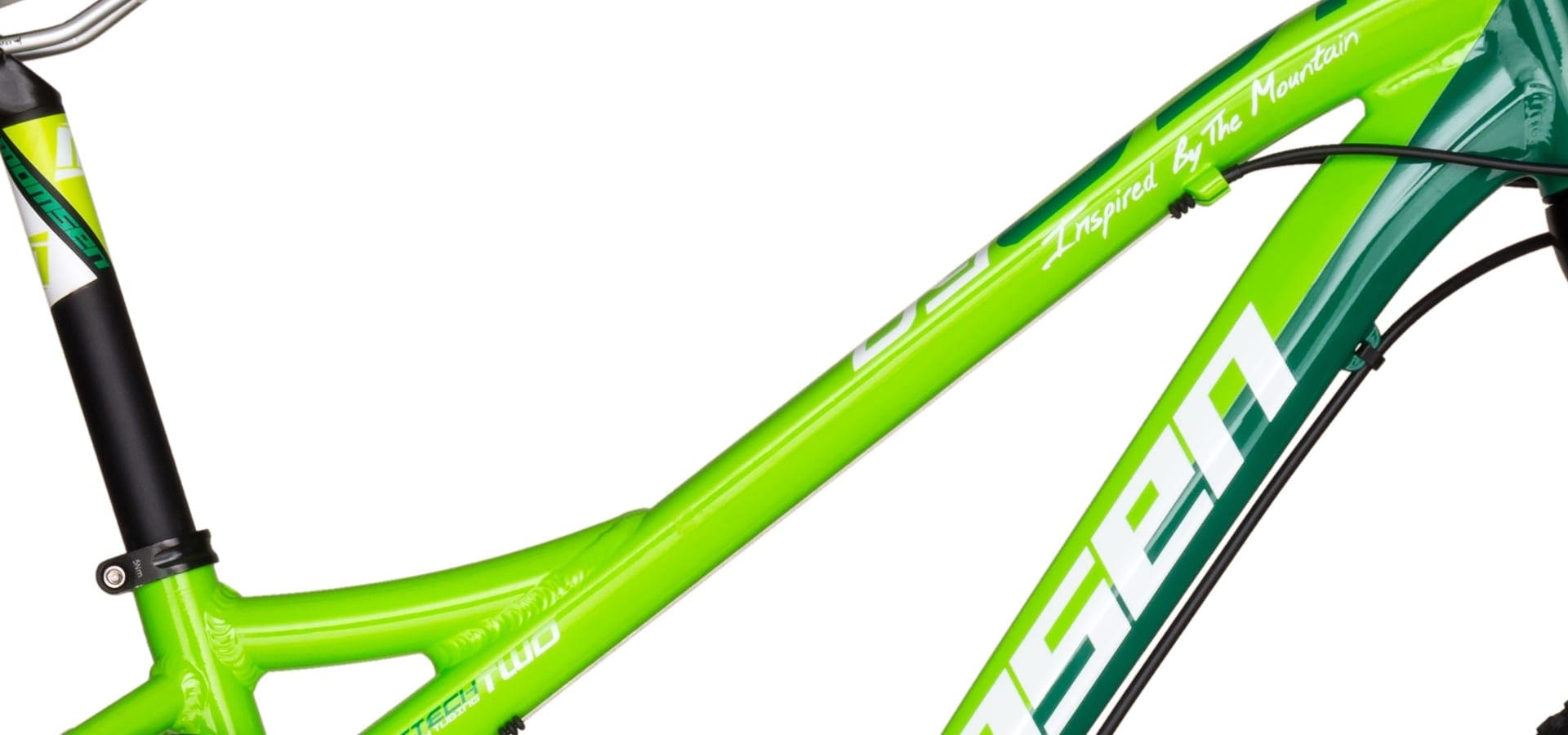

  • New 2016 Race Tech 2 Lady Frame Design – increased standover clearance and comfortable geometry

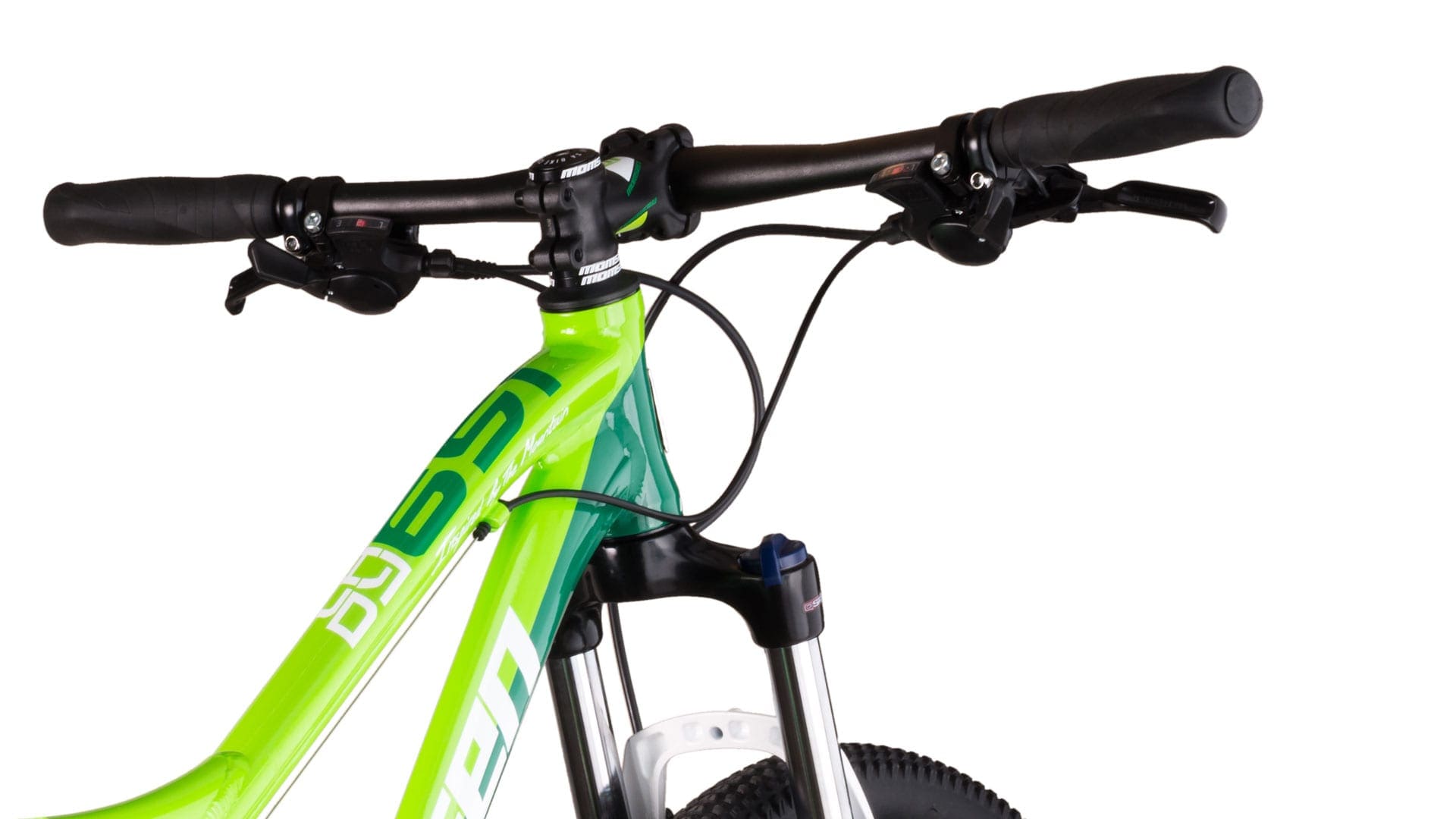

  • SR Suntour XCT Suspension Fork – 100mm Travel with Hydraulic Lockout with On/Off setting
  • Tektro M290 Hydraulic Disc Brakes – light action for safety and powerful braking
  • Shimano® TY701 Crankset and Shimano® Cartridge Bottom Bracket – Triple Chainring Design 44/34/24T

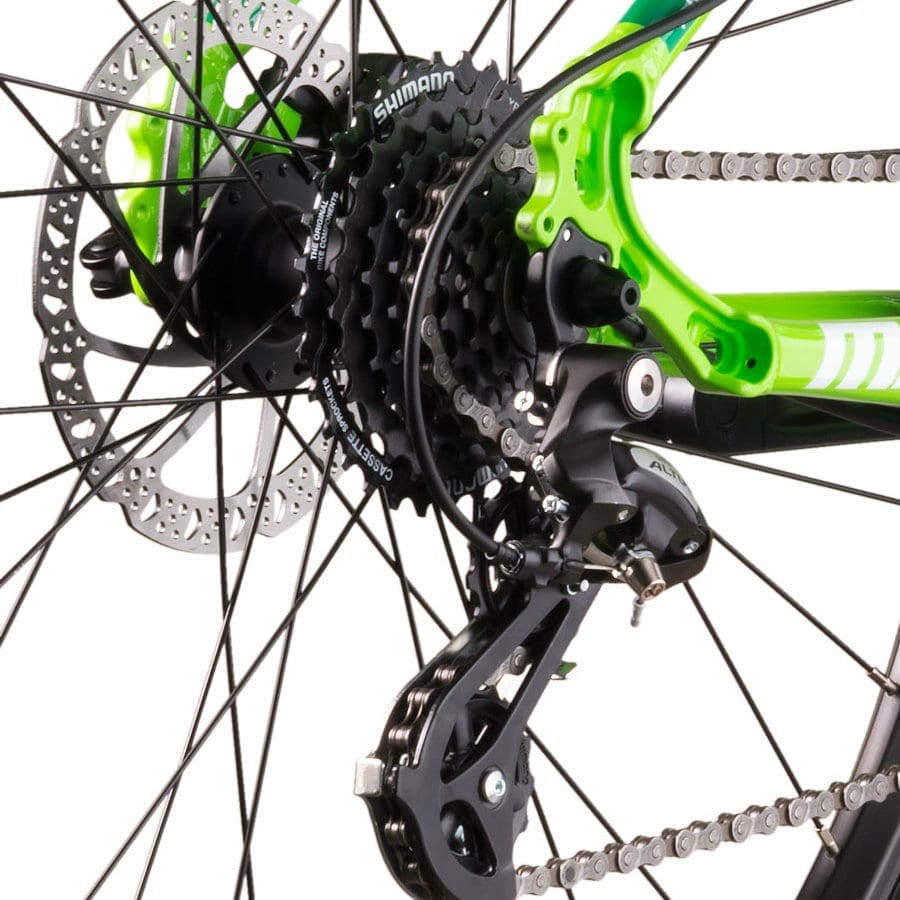

  • Shimano® HG200-8 Cassette with 12-32T Gearing
  • Weinmann XM260 Alloy DoubleWall Rims – Robust and Light
Image module
Image module
Image module
Image module
Image module

SPECIFICATIONS

Frame 2016 Race Tech 2, Lady Geometry, Alloy 6061 Butted Tubing
Sizes X-Small, Small
Fork SR Suntour XCT 27.5″ w/ Hydraulic Lockout, Preload Adjust, 100mm Travel
Rear Shock N/A
Chainwheel Shimano TY701 42/34/24T
Bottom Bracket Shimano Cartridge
F. Derailleur Shimano M190 Dual Pull
R. Derailleur Shimano Altus 8 Speed
Shifter Shimano M310 Trigger
Brake Levers Tektro M290 Hydraulic Disc
Brakes Tektro M290 Hydraulic Disc, Tektro Brake Rotors, 160mm Front and Rear
Cassette Shimano HG200-8, 12-32T
Rims Weinmann Custom XM260, 650b, 32H, Presta Valve
Tires CST Jack Rabbit 27.5 x 2.10, 27tpi Wire Bead
Pedals Steel Cage MTB
Handlebar Alloy Flat, 31.8 Oversize, 700mm
Stem Alloy Forged, 31.8mm Oversize
Seatpost Alloy Micro-Adjust
Seat Momsen Custom, Embossed Graphic, ED Rail
Headset Ahead Type
Colors Lime Green / Dark Green
Chain KMC 8 Speed
Hubset Alloy Disc Type, 32H, Quick Release
Spokes Stainless
Grips Kraton Ergonomic

GEOMETRY

SIZE X-SMALL SMALL
(A) Seat Tube Length  381  432
(B) Top Tube Effective  565  585
(C) Head Tube Angle  71°  71°
(D) Seat Tube Angle  73°  73°
(E) Wheelbase  1043  1063
(F) Rear Center  435  435
(G) BB Drop  53  53
(H) Head Tube Length  115  115
