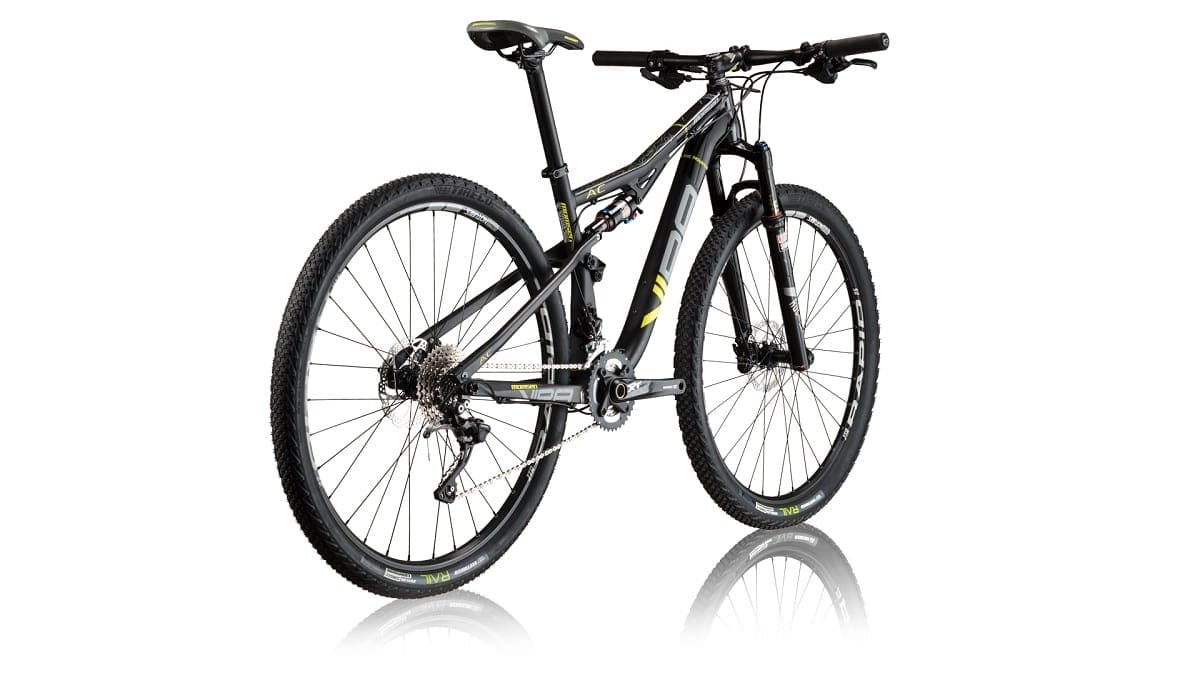

  • Race Proven Alloy Full Suspension VIPA frame with 80mm of Efficient Suspension Travel
  • 4 Sizes Available – S, M, L, XL
  • New Double Waterbottle Mount Feature on M, L and X-Large Frame Sizes * (Note: Momsen Design adaptor sold seperately)
  • Shimano® XT 2×10 Crankset and Shadow Plus Rear Derailleur – the most requested option

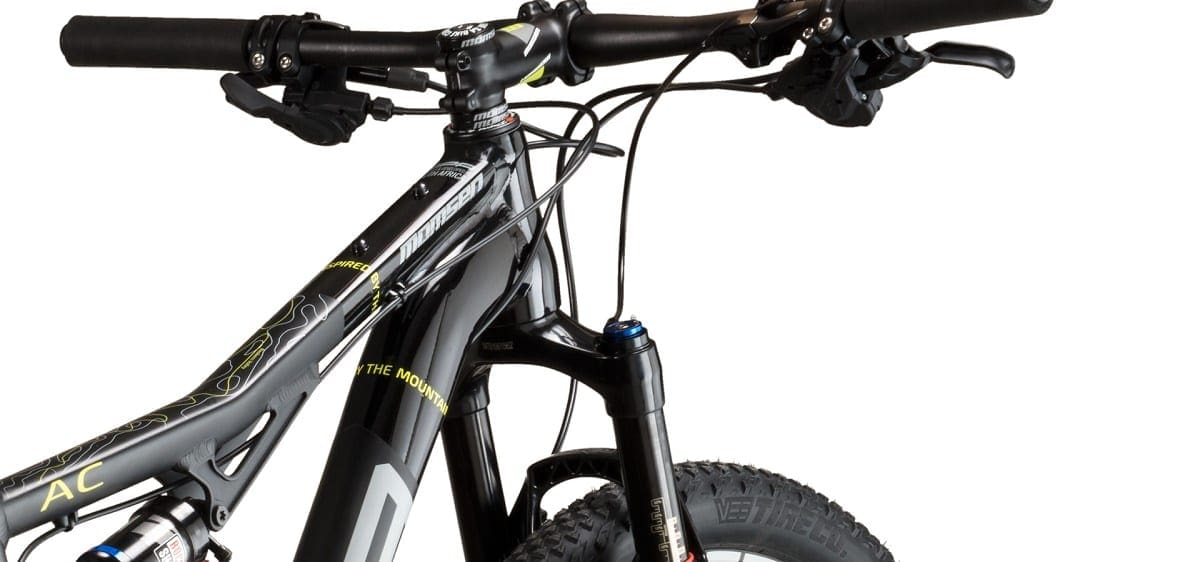

  • RockShox REBA RL Suspension Fork – Solo Air with 100mm Travel and 15mm Thru-Axle
  • RockShox ONELOC SPRINT Remote Lock – Revised Trigger Design and Actuation

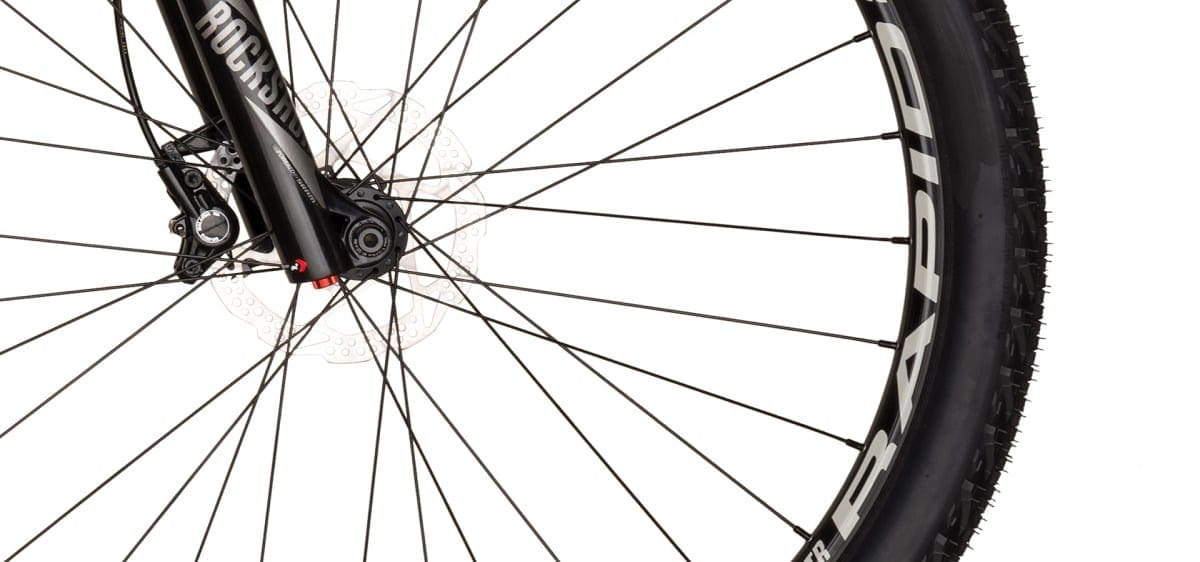

  • Stan’s ZTR RAPID 29er Tubeless Ready Rims – Patented Bead Socket Technology
  • Vee Tire Co. RAIL 29er Tubeless Ready Tyres – Race Proven
Image module
Image module
Image module
Image module


Frame Alloy Front Triangle, Full Carbon Rear Triangle, 80mm Rear Wheel Travel, New Dual Waterbottle Mount Design (for M, L and XL)
Sizes Small, Medium, Large, X-Large
Fork Rockshox REBA RL 29, ONELOC SPRINT Remote Lockout, 100mm Travel, 15mm Thru-Axle

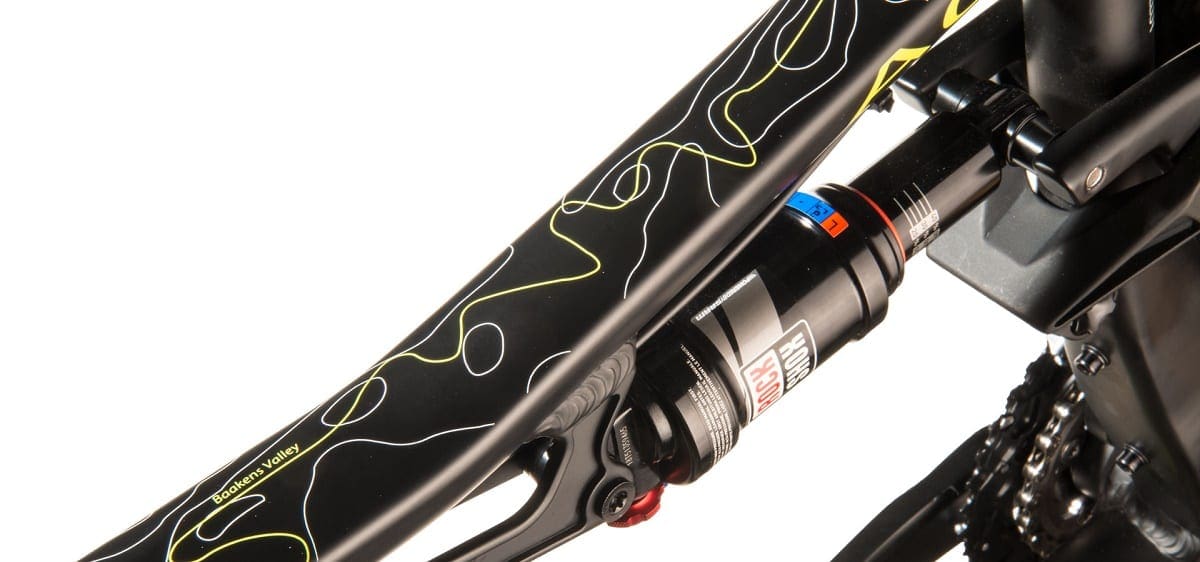

Rear Shock Rockshox Monarch RL Rebound Adjust
Chainwheel Shimano XT M785 38/24T
Bottom Bracket Shimano Pressfit
F. Derailleur Shimano M618 Direct Mount, Dual Pull
R. Derailleur Shimano XT M786 Shadow Plus for 10 Speed
Shifter Shimano Deore M610 Trigger
Brake Levers Shimano M615 Hydraulic
Brakes Shimano M615 Hydraulic, Shimano SM-RT54 Rotors, 160mm Front and Rear
Cassette Shimano HG50-10, 11-36T
Rims Stan’s No Tubes ZTR RAPID Tubeless Ready, 32H
Tires Vee Tire Co. RAIL Custom Logo, 72tpi Folding Bead, Tubeless Ready, Front: 29 x 2.25, Rear 29 x 1.95 (Note: Designed for 29 x 1.9 to 2.25 on ZTR Crest Rims)
Pedals N/A
Handlebar Alloy Flat, 31.8mm Oversize, 700mm
Stem Alloy Forged, 31.8mm Oversize
Seatpost Alloy Micro-Adjust
Seat Momsen Custom, Embossed Graphic, ED Rail
Headset Alloy Taper
Colors Matte Black / Neon Lime
Chain KMC 10 Speed
Hubset Shimano Deore, 15mm Front, 142 x 12 Rear, 32H
Spokes Stainless Butted
Grips Silicone Race
Weight 12.87kg (Medium, excl. Pedals)


(A) Seat Tube Length  406  432  483  533
(B) Top Tube Effective  570  595  615  640
(C) Head Tube Angle  70.5°  70.5°  70.5°  70.5°
(D) Seat Tube Angle  73.5°  73.5°  73.5°  73.5°
(E) Wheelbase  1077  1102  1122  1146
(F) Rear Center  440  440  440  440
(G) BB Drop  40  40  40  40
(H) Head Tube Length  105  115  125  135
(I) Reach  397  418.8  436  456
(J) Stack  585  595  604  614
