Race Proven Full Carbon Full Suspension Frame with 80mm of Efficient Suspension Travel
New Double Waterbottle Mount Feature on Medium and Large Frame Sizes (Note: Momsen Design adaptor sold separately)
Fox Suspension Front and Rear – Fox Float 32 Front Fork with FIT 4 Damper and 15mm Thru-Axle / Fox Float DPS (Dual Piston System) Rear Shock with 3 Position On-The-Fly adjustment via Dual Remote Lockout – choose between Open, Medium or Firm Suspension Settings

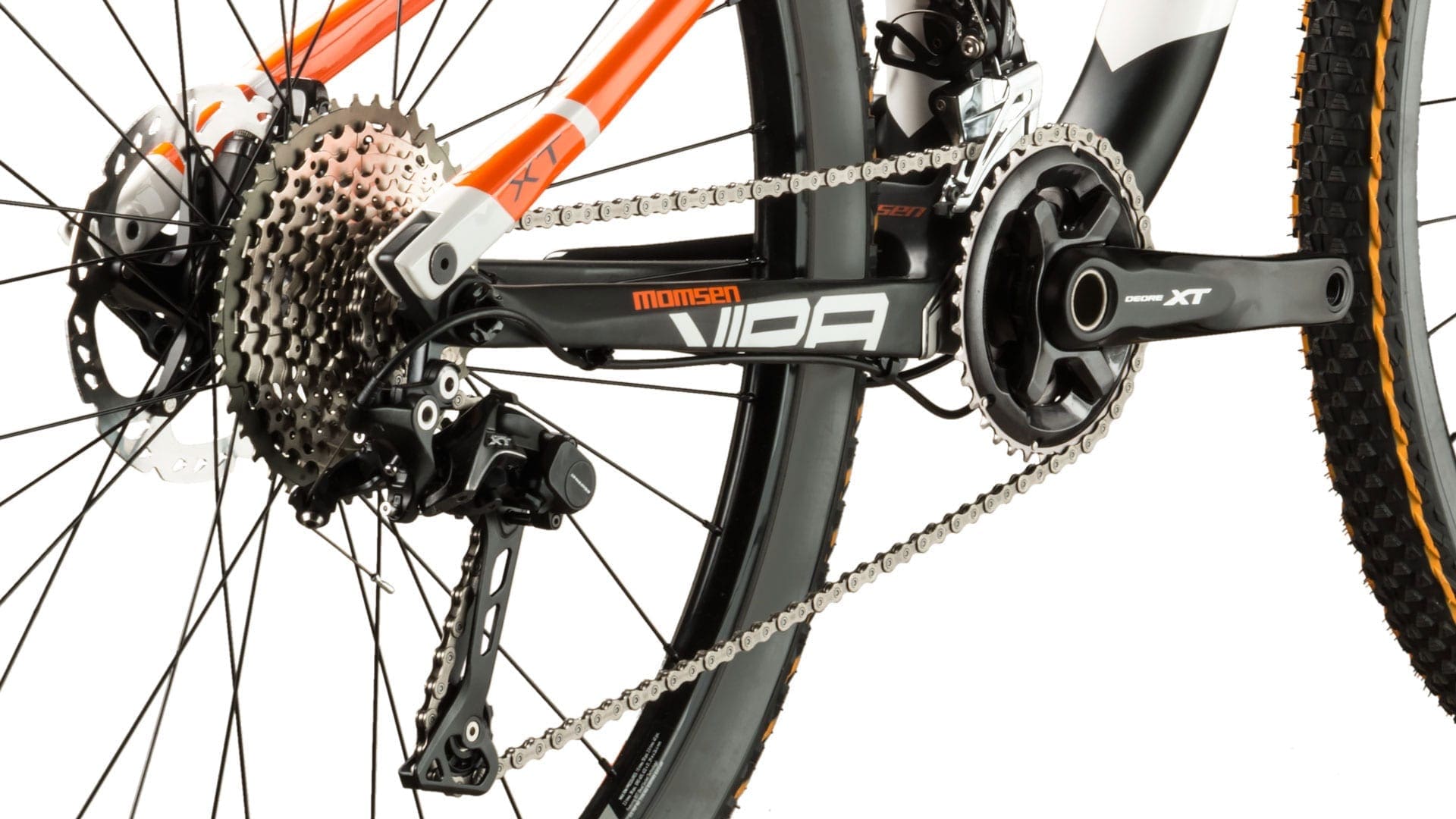

Shimano’s latest Deore XT M8000 Series Drivetrain – now upgraded to 11 Speed – Drivetrain includes Front and Rear Derailleurs, Shifters, Cassette, Chain, Brakes
Stan’s ZTR CREST 29er Rims with BST (Bead Socket Technology) for easy tubeless conversion and true tubeless performance
Vee Tire Co. RAIL 72tpi Folding Bead and Tubeless Ready Tyres
SPECIFICATIONS
Frame
Full Carbon Front Triangle, Full Carbon Rear Triangle, 80mm Rear Wheel Travel, New Dual Waterbottle Mount Design (for M and L)
Sizes
Small, Medium, Large
Fork
Fox Float 32 with FIT 4 System, Performance Series w/Remote Lockout, 100mm Travel, 15mm Thru-Axle, Taper Steerer
Rear Shock
Fox Float DPS (Dual Piston System) w/Remote Lockout with 3 Positions On-The-Fly Adjust – Open, Medium, Firm
Chainwheel
Shimano XT M8000 36/26T for 11 Speed
Bottom Bracket
Shimano BB-MT800 Pressfit
F. Derailleur
Shimano XT M8025-D for Direct Mount 11 Speed
R. Derailleur
Shimano XT M8000 Shadow Plus for 11 Speed
Shifter
Shimano XT M8000 I-Spec 2 for 11 Speed
Brake Levers
Shimano XT M8000
Brakes
Shimano XT M8000, Shimano SM-RT81 XT Rotors, 160mm Front and Rear
Cassette
Shimano XT M8000 11-40T for 11 Speed
Rims
Stan’s No Tubes ZTR Crest, Tubeless Ready, 32H
Tires
Vee Tire Co. RAIL Custom Logo, 72tpi Folding Bead, Tubeless Ready, Front: 29 x 2.25, Rear 29 x 1.95 (Note: Designed for 29 x 1.9 to 2.25 on ZTR Crest Rims)
