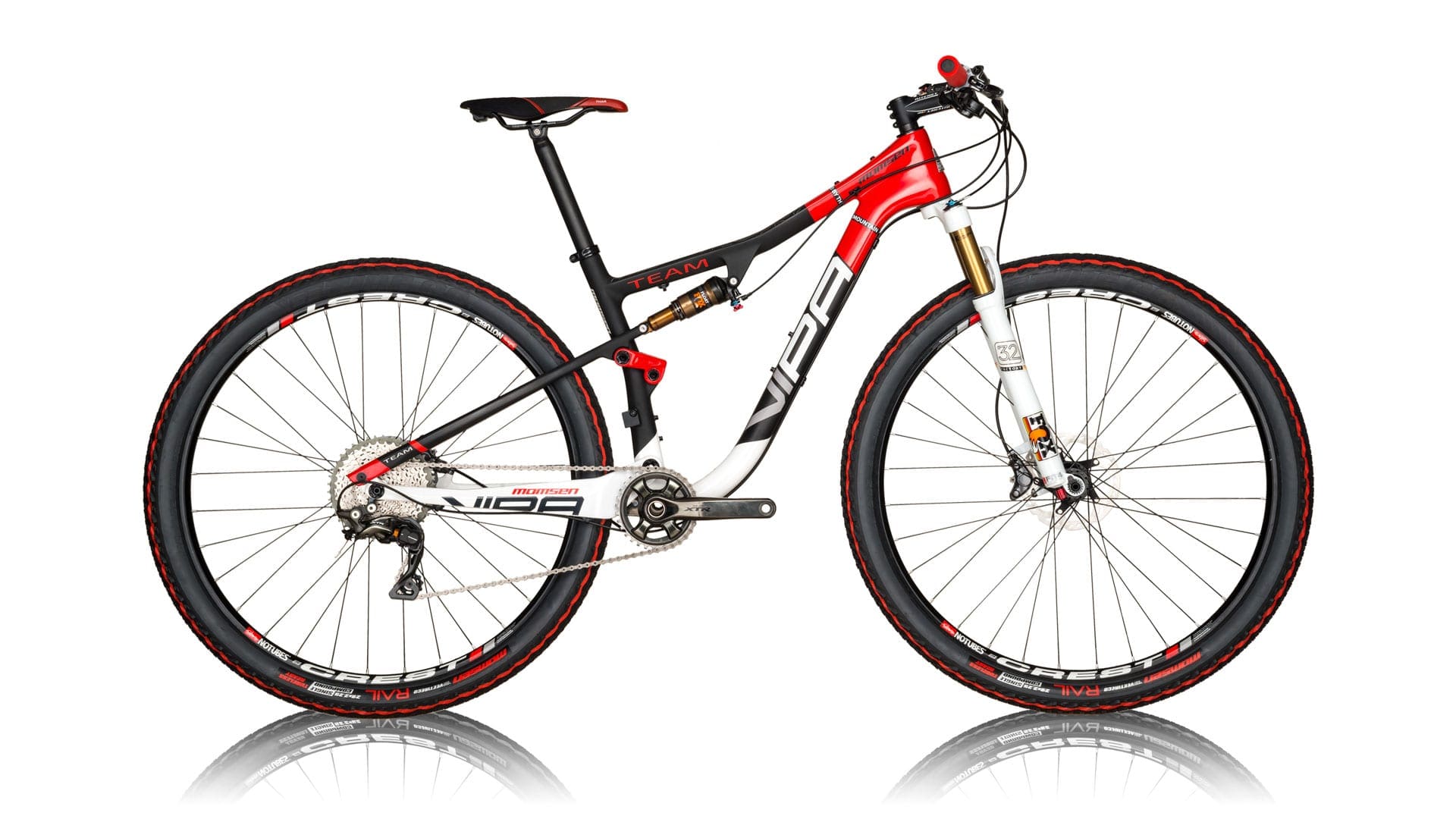

Race Proven Full Carbon Full Suspension Frame with 80mm of Efficient Suspension Travel
New Double Waterbottle Mount Feature on Medium and Large Frame Sizes (Note: Momsen Design adaptor sold separately – to be used with Momsen branded waterbottles)
FOX Factory Level Suspension – the best of the best with KASHIMA coatings, FIT 4 Damper and Dual Remote Lockout Lever

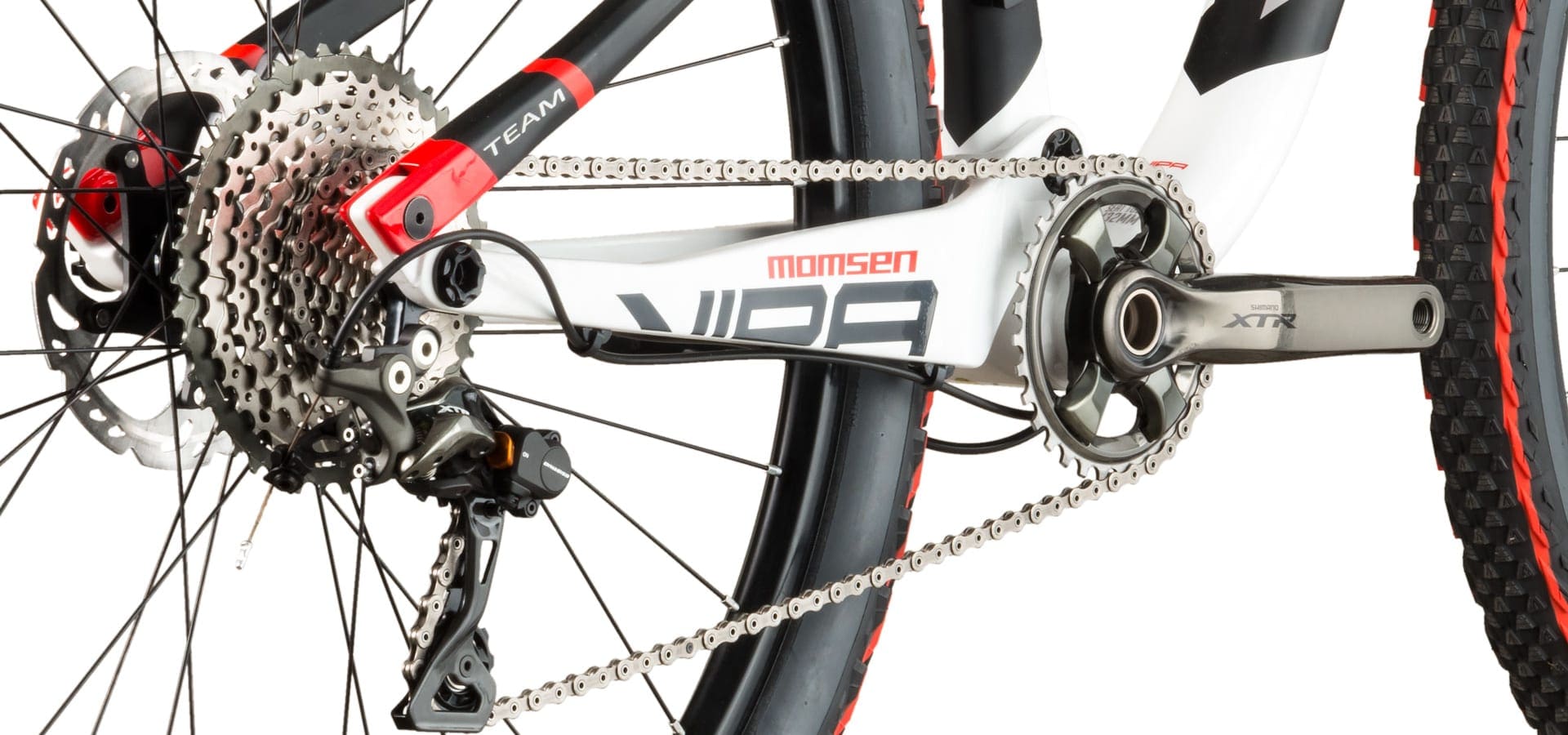

Shimano® XTR M9000 Groupset with new 11-42 Cassette – legendary range topping performance
Stan’s ZTR Crest Comp Wheelset with BST (Bead Socket Technology) for easy tubeless conversion and true tubeless performance
Ritchey Carbon WCS Handlebar with WCS C-260 Stem – high quality and superlight cockpit components
Fizik THAR Saddle with Custom Carbon Seatpost – popular aftermarket upgrades standard out the box
SPECIFICATIONS
Sizes
Small, Medium, Large
Frame
Full Carbon Front Triangle, Full Carbon Rear Triangle, 80mm Rear Wheel Travel, New Dual Waterbottle Mount Design (for M & L)
Fork
Fox Float 32 Kashima with FIT 4 System, Factory Series w/Remote Lockout, 100mm Travel, 15mm Thru-Axle, Taper Steerer
Rear Shock
Fox Float DPS (Dual Piston System) Kashima w/Remote Lockout with 3 Positions On-The-Fly Adjust – Open, Medium, Firm
Chainwheel
Shimano XTR M9000 32T for 11 Speed
Bottom Bracket
Shimano Pressfit
F. Derailleur
N/A
R. Derailleur
Shimano XTR M9000 Shadow Plus for 11 Speed
Shifter
Shimano XTR M9000 I-Spec 2 for 11 Speed
Brake Levers
Shimano XTR M9000
Brakes
Shimano XTR M9000, Shimano SM-RT86 XTR Rotors, 160mm Front and Rear
Cassette
Shimano XT M8000 11-42T for 11 Speed
Rims
Stan’s No Tubes ZTR Crest, Tubeless Ready, 32H
Tires
Vee Tire Co. RAIL Custom Logo, 72tpi Folding Bead, Tubeless Ready, Front: 29 x 2.25, Rear 29 x 1.95 (Note: Designed for 29 x 1.9 to 2.25 on ZTR Crest Rims)
